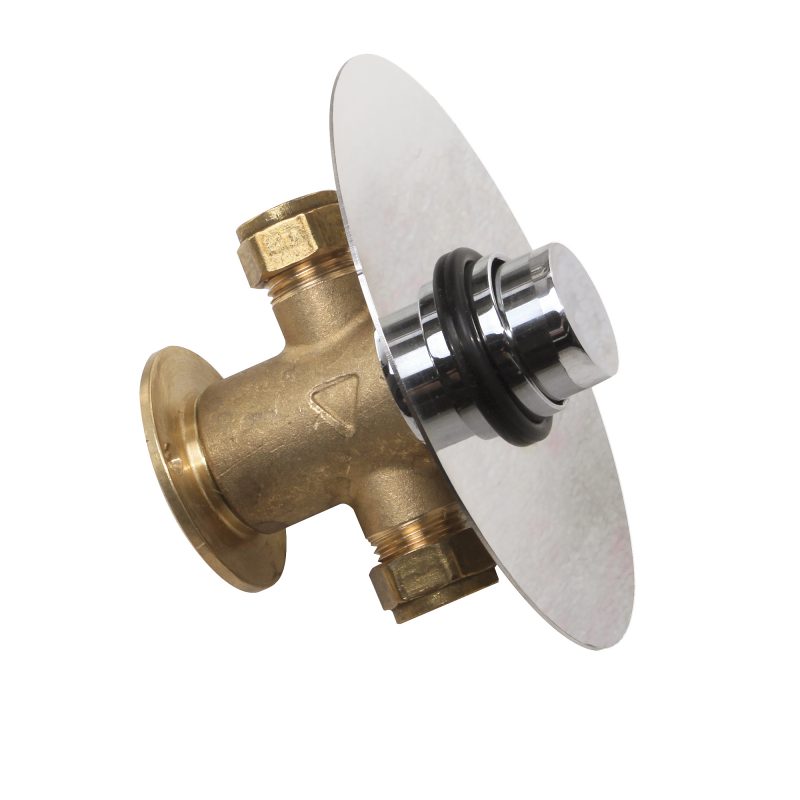

Grantham Concealed Time Flow Shower Control – Efficient, Durable, and WRAS Approved
The Grantham Concealed Time Flow Shower Control from Pland Stainless is expertly engineered to deliver reliable performance.
Designed with both functionality and aesthetics in mind, this unit features a sleek concealed design and an automatic shut-off mechanism that helps facilities manage water usage efficiently.
Constructed from premium-grade 1.4301 (304) stainless steel and brass, the valve ensures long-term durability and a polished finish that complements modern washrooms.
Moreover, its 15 ± 3 second timed flow provides consistent water control, significantly reducing waste and lowering utility costs.
Thanks to a concealed installation, pipework remains hidden and protected, making it an ideal solution for tamper-prone areas such as gyms, schools, and public toilets.
In addition, the smooth push-button operation is intuitive and accessible for all users, eliminating the need for complex controls or adjustments.
Certified to WRAS standards, the Grantham shower control complies with UK regulations for water safety and system compatibility.
It also offers versatility, operating within a wide pressure range of 0.2 to 10 bar and accommodating inlet temperatures up to 65°C.
Whether you’re outfitting a leisure centre, upgrading a school facility, or maintaining a public washroom, the Grantham Concealed Time Flow Shower Control provides a dependable, hygienic, and efficient solution that meets the demands of modern public spaces.
💡 Key Features:
-
Automatic Timed Flow
Saves water with a non-concussive timed shut-off (15 ± 3 seconds), promoting responsible usage and reducing utility costs. -
Durable Construction
Made from high-grade 1.4301 (304) stainless steel and brass with a polished finish for long-lasting performance and a modern look. -
Wall-Mounted & Space-Saving
Concealed installation offers a clean, tamper-resistant setup ideal for public restrooms, gyms, and hospitality settings. -
User-Friendly Design
Simple to operate—suitable for all users with smooth push action and no complicated controls. -
Reliable Performance
Operates within a pressure range of 0.2 to 10 bar and handles inlet temperatures up to 65°C. -
WRAS Approved
Independently tested and certified for water safety and compliance with UK regulations.
📐 Specifications:
-
Flow Time: 15 ± 3 seconds
-
Valve Dimensions: 130mm (H) x 95mm (W) x 88mm (D)
-
Mounting: Wall-mounted, concealed
-
Materials: Stainless Steel (1.4301 / 304) & Brass
-
Max Inlet Temp: 65°C
-
Operating Pressure: 0.2 – 10 bar
✅ Ideal For:
-
Hotels
-
Leisure Centres & Gyms
-
Schools & Universities
-
Office Buildings
-
Public Toilets & Changing Rooms
📦 In the Box:
-
Grantham Time Flow Shower Valve
-
Wall fitting kit
-
Installation guide
